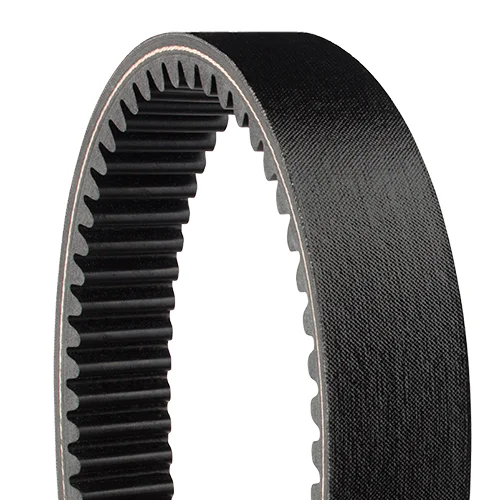

This cogged V-belt delivers a high level of power transmission with excellent durability. Designed for smooth and stable performance, even under high-speed operation, the cogged V-belt also offers superior flexibility and optimized heat emission, making it ideal for demanding industrial applications.
| Type | Top Width,b mm | Pitch Width mm | Height,h, mm | ||
| HG | 16.5 | 15.4 | 8.0 | ||
| HH | 20.4 | 19.0 | 10.0 | ||
| HI | 25.4 | 23.6 | 12.7 | ||
| HJ | 31.8 | 29.6 | 15.1 | ||
| HK | 38.1 | 35.5 | 17.5 | ||
| HL | 44.5 | 41.4 | 19.8 | ||
| HM | 50.8 | 47.3 | 22.2 | ||
| HN | 57.2 | 53.2 | 23.9 | ||
| HO | 63.5 | 59.1 | 25.4 | ||
| Type | Top Width,b mm | Height,h, mm | |||
| 25FV | 25.0 | 13.0 | |||
| 32FV | 32.0 | 15.0 | |||
| 38FV | 38.0 | 18.0 | |||
| 44FV | 44.0 | 20.0 | |||
| 51FV | 51.0 | 22.0 | |||
| 57FV | 57.0 | 24.0 | |||
| 63FV | 63.0 | 26.0 |
| Type | Top Width,b mm | Pitch Width mm | Height,h mm |
| W16 | 17 | 16 | 6 |
| W20 | 21 | 20 | 7 |
| W25 | 26 | 25 | 8 |
| W31.5 | 42 | 40 | 13 |
| W40 | 52 | 50 | 16 |
| W50 | 52 | 50 | 16 |
| W63 | 65 | 63 | 20 |
| W80 | 83 | 80 | 26 |
| W100 | 104 | 100 | 32 |
| Type | Top Width,b mm | Pitch Width mm | Height,h mm |
| 1022V | 16 | 6 | 22° |
| 1422V | 22 | 8 | 22° |
| 1922V | 30 | 11 | 22° |
| 2322V | 36.5 | 12 | 22° |
| 2926V | 46 | 41 | 26° |
| 4430V | 70 | 17 | 30 |
| 4836V | 76 | 22 | 36 |
| 6236V | 100 | 26 | 36 |
