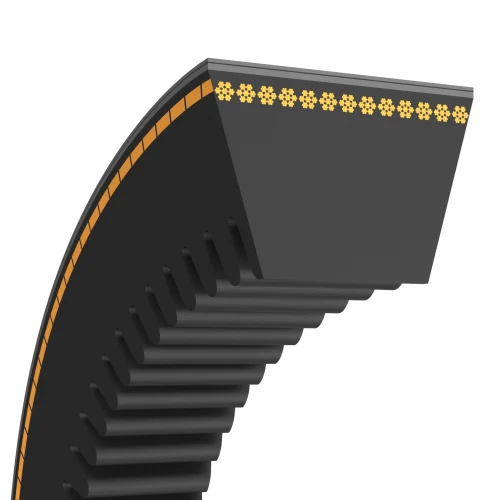

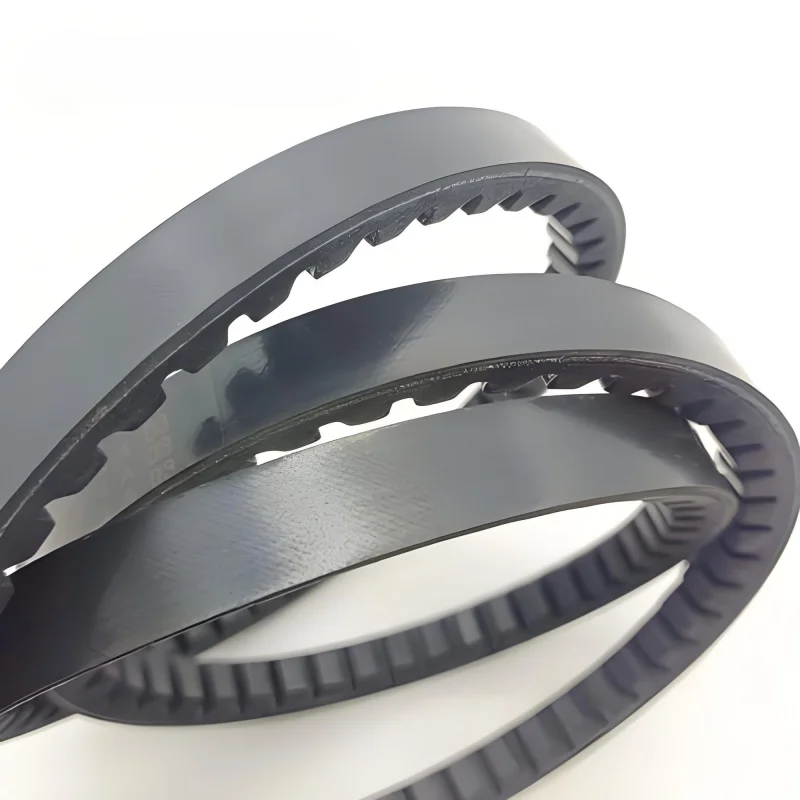

Cogged narrow v belt and non-cogged narrow v belt both can be produced for length range from 550mm to 3550mm. Both narrow profile perfect designed for high shock loading on short centers and small diameters
| Type | Top Width,b mm | Pitch Width mm | Height,h, mm | Angel |
| XPZ | 10 | 8 | 8 | 40° |
| XPA | 13 | 1 | 10 | 40° |
| XPB | 17 | 14 | 14 | 40° |
| XPC | 22 | 19 | 18 | 40° |
| 3VX(9N) | 9.5 | – | 8 | 40° |
| 5VX(15N) | 16 | – | 13.5 | 40° |
| 8VX(25N) | 25.4 | – | 23 | 40° |
