High-Performance Steel Cord Conveyor Belt Manufacturer from China
—Tiantie Industrial
Reliable. Reinforced. Ready for your toughest conveyor challenges.
Steel Cord Conveyor Belt
- Steel Cord Conveyor Belt offers strength from ST630 to ST5400 for all-duty applications.
- Cord diameter ranges 3–11.3 mm, making Steel Cord Conveyor Belt highly customizable.
- Steel Cord Conveyor Belt features pitch options from 10 to 17±1.5 mm for stability.
- Cover thickness 5×5–9×9 mm enhances Steel Cord Conveyor Belt wear resistance.
- Steel Cord Conveyor Belt supports pulley diameters from 500 mm to 1800 mm.
- Steel Cord Conveyor Belt delivers strength and durability even under extreme load.
Steel Cord Conveyor Belt Specification
Strength：ST630-7100N/mm
Width(mm）：400-2500
| Item | ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 |
Tensile strength(N/mm) | 630 | 800 | 1000 | 1250 | 1600 | 2000 | 2500 | 3150 | 3500 | 4000 | 4500 | 5000 | 5400 |
Diameter (mm) | 3 | 3.5 | 4 | 4.5 | 5 | 6 | 7.2 | 8.1 | 8.6 | 8.9 | 9.7 | 10.9 | 11.3 |
Pitch(mm) | 10±1.5 | 10±1.5 | 12±1.5 | 12±1.5 | 12±1.5 | 12±1.5 | 15±1.5 | 15±1.5 | 15±1.5 | 15±1.5 | 16±1.5 | 17±1.5 | 17±1.5 |
Cover Thickness (mm) | 5×5 | 5×5 | 6×6 | 6×6 | 6×6 | 8×8 | 8×8 | 8×8 | 8×8 | 8×8 | 8×8 | 8.5×8.5 | 9×9 |
Minimum Pulley Diameter(mm) | 500 | 500 | 630 | 800 | 1000 | 1000 | 1250 | 1400 | 1600 | 1600 | 1600 | 1800 | 1800 |
Number of Steel Cord
| Width (mm) | ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 |
| 800 | 75 | 75 | 63 | 63 | 63 | 63 | 50 | 50 | 50 | ||||
| 1000 | 95 | 95 | 79 | 79 | 79 | 79 | 64 | 64 | 64 | 64 | 59 | 55 | 55 |
| 1200 | 113 | 113 | 94 | 94 | 94 | 94 | 76 | 76 | 77 | 77 | 71 | 66 | 66 |
| 1400 | 133 | 133 | 111 | 111 | 111 | 111 | 89 | 89 | 90 | 90 | 84 | 78 | 78 |
| 1600 | 151 | 151 | 126 | 126 | 126 | 126 | 101 | 101 | 104 | 104 | 96 | 90 | 90 |
| 1800 | 171 | 143 | 143 | 143 | 143 | 114 | 114 | 117 | 117 | 109 | 102 | 102 | |
| 2000 | 159 | 159 | 159 | 159 | 128 | 128 | 130 | 130 | 121 | 113 | 113 | ||
| 2200 | 176 | 141 | 141 | 144 | 144 | 134 | 125 | 125 | |||||
| 2400 | 193 | 155 | 155 | 157 | 157 | 146 | 137 | 137 |
Adhesive
| Tensile Strength | ST630 | ST800 | ST1000 | ST1250 | ST1600 | ST2000 | ST2500 | ST3150 | ST3500 | ST4000 | ST4500 | ST5000 | ST5400 |
| Before Aging | 60 | 70 | 80 | 95 | 105 | 105 | 130 | 140 | 145 | 150 | 165 | 175 | 180 |
| After Aging | 55 | 65 | 75 | 90 | 95 | 95 | 120 | 130 | 140 | 145 | 160 | 170 | 175 |

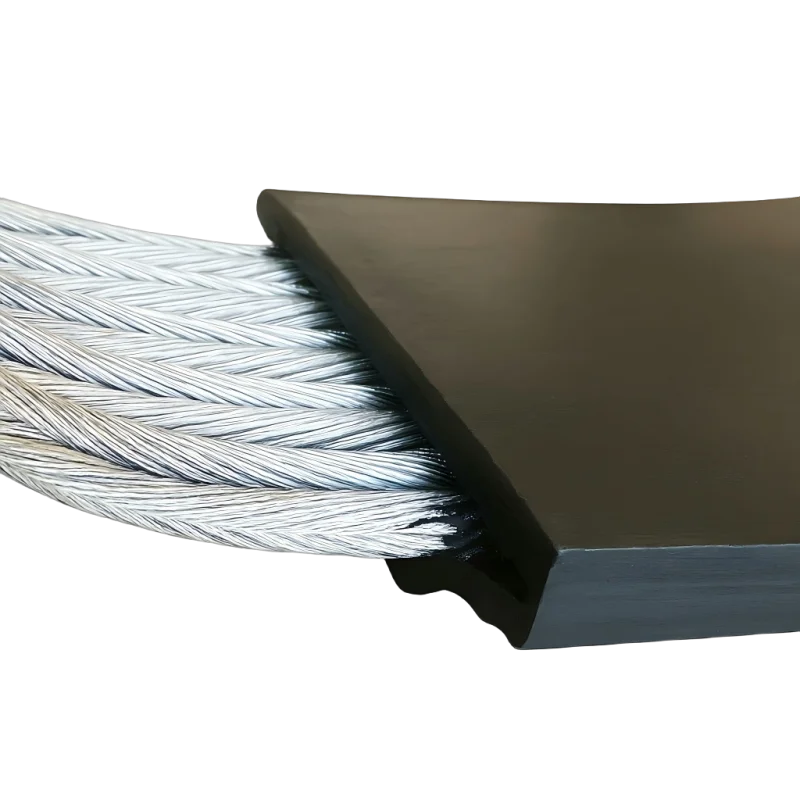

Steel Cord Conveyor Belt Construction
- Top Cover:
Wear-resistant rubber layer for surface protection. - Bounding Rubber:
Ensures strong bonding between steel cords and covers. - Steel Cord:
High-strength galvanized wires for load bearing and low elongation. - Bottom Cover:
Protects the belt underside from friction and wear.
Steel Cord Conveyor Belt Tensile Strength
The principle of testing the tensile strength of a steel cord conveyor belt is similar to that of testing the tensile strength of an EP conveyor belt. However, since the steel cord can withstand greater tension, a larger clamp is required to clamp the conveyor belt, as shown in the figure, or another clamp fastened by screws.
Quality Control
Bringing you good service and good products is our pursuit.
Rubber Conveyor Belt Shipping And Packing
Packaging Forms:
Round roll
Glasses roll
Oval roll
Outer Wrapping:
PP tarpaulin (polypropylene waterproof cloth)
Customizable colors for tarpaulin wrapping
Support & Protection Options:
Wooden pallet
Metal pallet
Iron frame
Packaging Recommendation:
Tiantie Industrial will provide corresponding packaging suggestions based on the type of conveyor belt you order
Professional for Best Quality
Tough Rubber Conveyor Belt Built to Last
Rubber conveyor belts designed to withstand the toughest conditions.
- High-quality rubber compounds resist wear even under continuous load and friction.
- Our belts often last 20–40% longer than standard alternatives in the same working conditions.
- Reinforced fabric plies and anti-tear designs minimize damage from sharp or heavy materials.
- Designed to handle extreme environments—from -60°C cold storage to 300°C heat zones.
Tailored Rubber Conveyor Belts — No Trade-Offs
Every belt is tailored for your operation, not off-the-shelf.
- We don’t stop at EP, NN, or steel cord. We also offer cotton canvas, aramid fabric, and hybrid reinforcements for specific industrial requirements.
- All cover rubbers are available in standard classifications like DIN , RMA , and ISO, ensuring compliance with global durability and safety benchmarks.
- Adjust ply count, tensile strength, thickness, and width to perfectly match your system design.
- Add your logo, project codes, or tracking info directly to the belt for easy inventory management.
Factory-Direct Pricing
Quality conveyor belts without the middlemen markup.
- We manage cost and quality in-house—from raw materials to final belts—for consistent, competitive output.
- Our MOQ is 20–30% lower than the market average, helping partners optimize inventory and cash flow.
- Clear, straightforward pricing with no hidden costs—what you see is what you pay.
- Larger volumes bring better unit prices—ideal for long-term cooperation and repeat orders.
Rubber Conveyor Belts Delivered Fast Worldwide
We move fast—without cutting corners.
- When time is critical, we fast-track your order—custom conveyor belts deliveried in as fast as 20 days.
- We prepare all export paperwork—invoice, CO, B/L—accurately to match your import requirements and avoid customs delays.
- We’ve successfully delivered belts to over 50 countries, including South America, Southeast Asia, Africa, and the Middle East.
- Backed by 10 production lines, we keep your orders on track and deliver right when you need them.
Trusted by 8,000+ Industrial Clients
Real trust, built through consistent delivery and proven performance.
- Over 8,000 companies like yours have chosen our conveyor belts for mining, cement, and ports.
- Our Rubber conveyor belts help reduce downtime and maintenance, so you keep your lines moving.
- Nearly 80% of our customers reorder, thanks to consistent quality and support.
- A dedicated sales manager will support you one-on-one—from first quote to final delivery.
Why Choose Us
We are proud to maintain an unparalleled level of client satisfaction, built on trust, reliability, and quality service in providing industrial conveyor belts.
Our proven track record speaks for itself, with thousands of industrial conveyor belt projects successfully delivered to satisfied clients worldwide.
You Partner with a Reputable Team
From project initiation to completion, the whole process was unbelievably smooth. The team was professional, efficient and exceeded our expectations. Highly recommended!
Every step of the cooperation demonstrated their professional competence and dedication. We are very pleased with the results and look forward to working together in the future.
No matter the situation, they responded and solved the problem quickly. Very reliable partners. We would absolutely choose them again and recommend them to any company in need of quality service.
Our Clients
Our success is proven by the strength of our clients.
Join the growing list of businesses that trust us for quality and reliable service.
F.A.Q
Our conveyor belts comply with international standards such as ISO quality management system and DIN , and undergo rigorous in-house quality testing and third-party certification to ensure that key properties such as abrasion resistance, tensile strength, and resistance to high temperatures are at industry-leading levels.
Yes, we not only optimize the performance of our products according to specific application scenarios, but also customize the size of the conveyor belt, the thickness of the top and bottom rubber, etc., to ensure compliance with special specifications, and provide one-on-one technical support to ensure that the customized products accurately fit your needs.
We will take samples from the product after completion, and prioritize testing in the laboratory to ensure that the performance meets the standard before arranging shipment to ensure that you receive a reliable product quality to meet the requirements of actual use.
We offer a variety of high-quality packaging options such as PP bags, as well as steel pallet packaging options for added transportation security, ensuring that the conveyor belts are protected from damage during long-distance shipments and are delivered to the customer in perfect condition.
We have a dedicated after-sales team with an average response time of 12 hours and provide initial solutions within 24 hours to ensure that your production process is not affected.
We have over 20 years of international export experience and have handled export requirements from more than 50 countries around the world, and can help you complete customs clearance and logistics arrangements efficiently.
