China Steel Cord Conveyor Belt Manufacturer
Get durable Steel Cord Conveyor Belt solutions for long-distance, high-tension, and heavy-load bulk material handling applications.
- 1–5 Years Warranty Based on Cover Rubber Type
- ISO / DIN / MA Certified Factory Supply
- Factory Direct Competitive Pricing
- 20+ Years Export Experience
Select Your Right Steel Cord Conveyor Belt
Steel Cord Conveyor Belt Specification
| Item | Range |
|---|---|
| Belt Strength | ST630 – ST5400 |
| Width | 400 – 2500 mm |
| Cover Rubber Thickness | 5+5 – 9+9 mm |
| Steel Cord Diameter | 3.0 – 11.3 mm |
| Cord Pitch | 10±1.5 – 17±1.5 mm |
| Minimum Pulley Diameter | 500 – 1800 mm |
Cover Rubber Options
| Region / Standard | Cover Rubber Type | Key Features / Application |
|---|---|---|
| Germany | W, X, Y, Z, K, V | General, flame-retardant, antistatic; tensile and abrasion per DIN 22131 / 22102 / 22103 |
| Australia | A, E, F, M, TDOZ, N, S | Wear-resistant, antistatic, flame-retardant, PVC; tensile and abrasion per AS1333-94 / AS1332:1991 |
| International | H, D, L | Strong cut/tear, high/medium wear; per ISO10247:1990 |
| Soviet / Russia | A, B, N, C, M, T1-T3, 2T1-2T2, JI | General, heat-resistant (<200℃), food-grade; per DOCT20-85 |
| Japan | P, G, S, A, H, D, L | General, strong cut/tear, medium wear; per JIS K6322:1999 / ISO10247:1990 |
| UK | M24, N17, B | General, flame-resistant; per BS490: P1/P3 |
| USA | RMA1, RMA2 | General, wear-resistant; per ASTM standards |
Extreme Conditions Available
- Heat-Resistant Rubber: Continuous operation over 250°C
- Cold-Resistant Rubber: Maintains flexibility down to -50°C
You can select cover rubber type based on material, environment, and temperature requirements. Warranty and service terms are confirmed based on cover rubber type and application.
Who is Tiantie Industrial
Why Choose Tiantie Industrial Conveyor Belt
Cover Rubber Built for Harsh Working Conditions
Our cover rubber options are developed for real industrial environments, including abrasion, heat, cold, flame, chemical exposure, and tearing risk. This helps the belt better match mining, cement, power plant, port, and long-distance conveying applications instead of using one general cover for every condition.

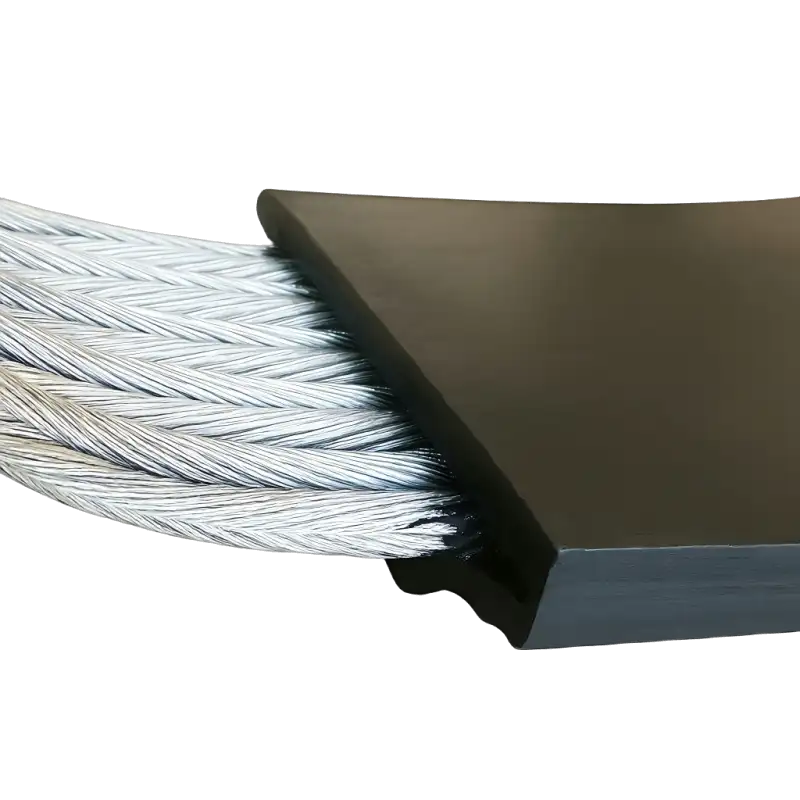

Stable Steel Cord Core for High-Tension Conveying
The steel cord core supports the belt under long-distance, high-load, and high-tension operation. Controlled cord arrangement and rubber bonding help reduce internal separation, uneven tension distribution, and hidden fatigue risks during continuous conveying.
Anti-Tear Reinforcement for Sharp Material Handling
Sharp ore, limestone, large aggregates, and high-impact loading points can increase the risk of belt tearing. Anti-tear belt construction helps reduce longitudinal tearing risk and unexpected shutdowns in mining, quarrying, cement, and bulk material handling systems.
Strong Belt Body Integrity for Continuous Operation
The belt body is built to maintain structural stability under repeated loading, impact, bending, and long operating hours. This helps reduce edge cracking, bulging, delamination, and unplanned shutdown risks in demanding bulk material handling systems.
Manufacturing Capacity for Steel Cord Conveyor Belt Production
Tiantie Industrial Co., Ltd operates a 120,000-square-meter manufacturing facility with 60 advanced production lines and more than 300 production staff.
With over 30,000 tons of annual rubber mixing capacity, daily conveyor belt output exceeding 35,000 meters, and monthly capacity over 800,000 meters, Tiantie supports stable supply for large industrial and project-based orders.
Production strength is supported by automated batching, enclosed internal mixing, calendering, hot lamination, and more than 40 vulcanization systems, including steel cord conveyor belt production lines.

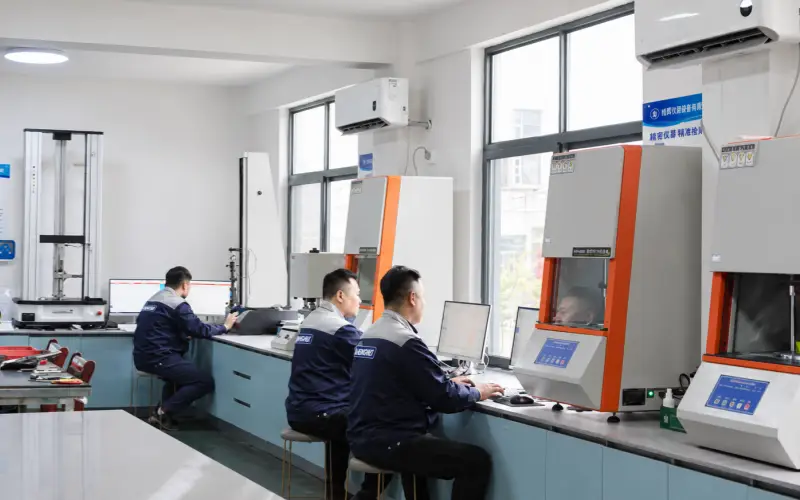

With 8 technical engineers and 20 laboratory specialists, every order is controlled from raw materials to finished belts through compound, adhesion, abrasion, tensile strength, width, and thickness inspections.
RUBBER MIXING CAPACITY
Monthly Output
PROJECTS DELIVERED
ADVANCED PRODUCTION LINES
Where Steel Cord Conveyor Belt Fits Best
Choose Steel Cord Conveyor Belt when your conveying system requires long-distance transport, higher working tension, heavy material loading, or continuous industrial operation.

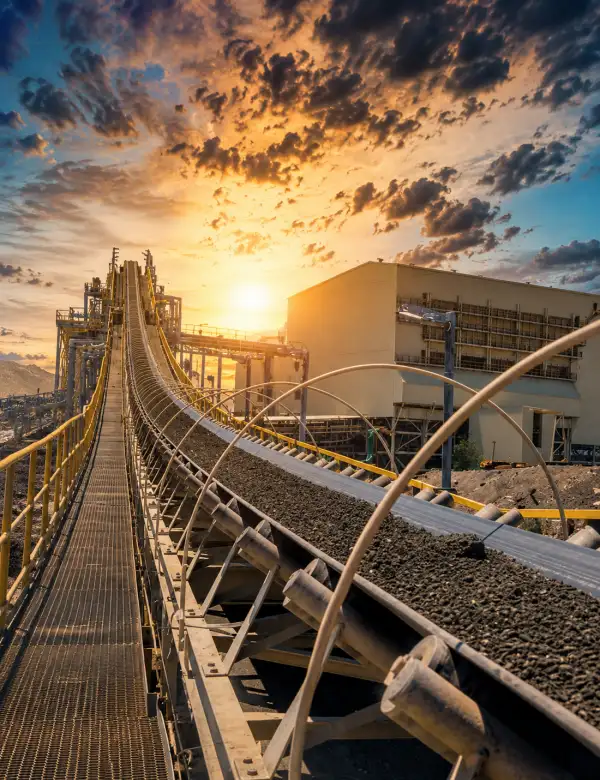

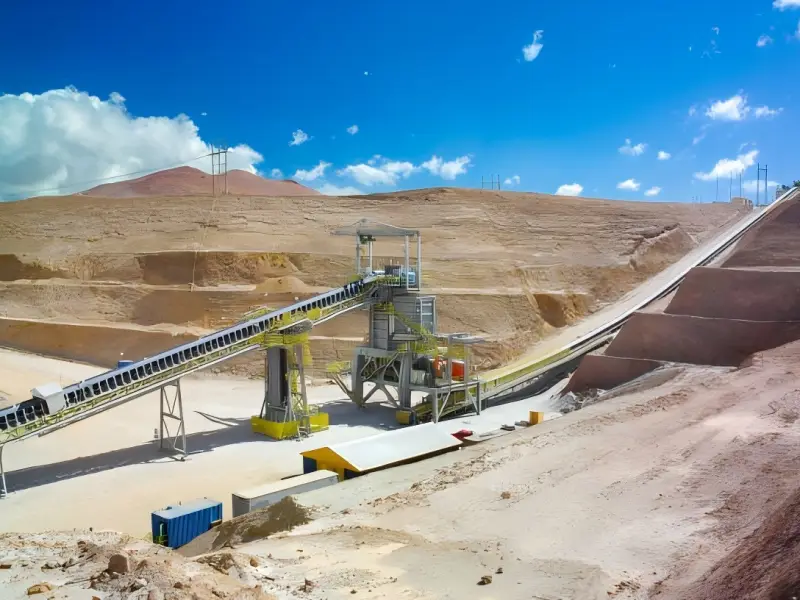

Long-Distance Conveying Lines
For overland conveyors, plant-to-stockyard lines, and long-route material transport systems where belt stability and tension matching are critical.

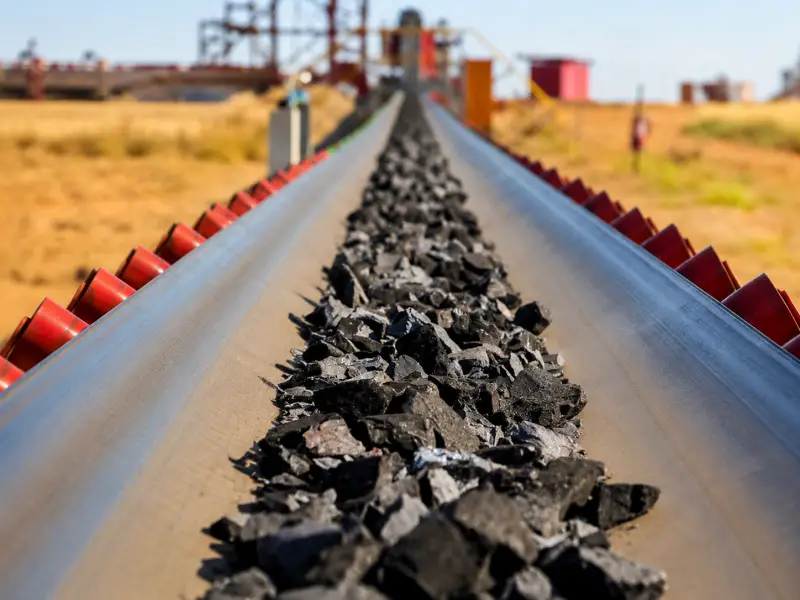

Heavy Bulk Material Handling
Used for ore, coal, limestone, cement clinker, gravel, sand, and other bulk materials in mining, cement, power, and terminal operations.

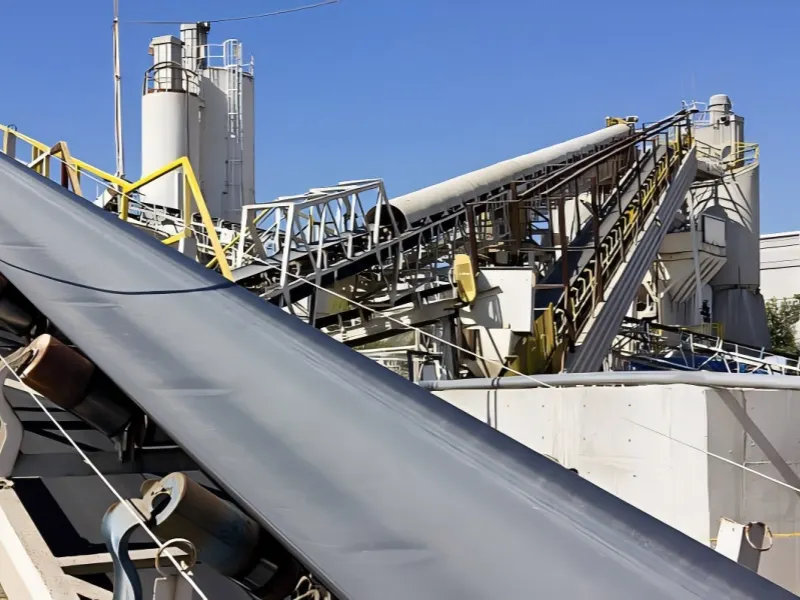

High Working Tension Projects
Suitable for conveyor systems where the belt strength grade must match higher design tension, larger load capacity, or longer center distance.

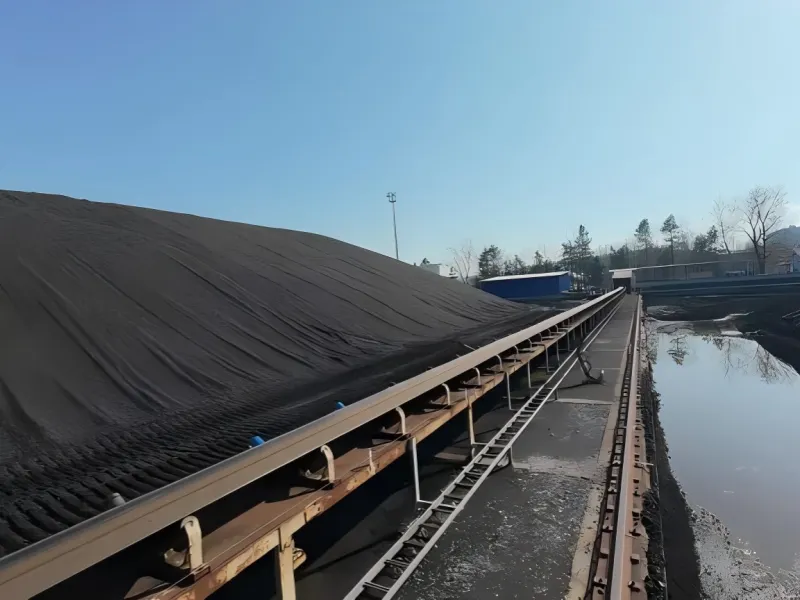

Continuous Industrial Operation
For production lines that run for long hours and require a conveyor belt suitable for demanding working conditions and repeated material loading.

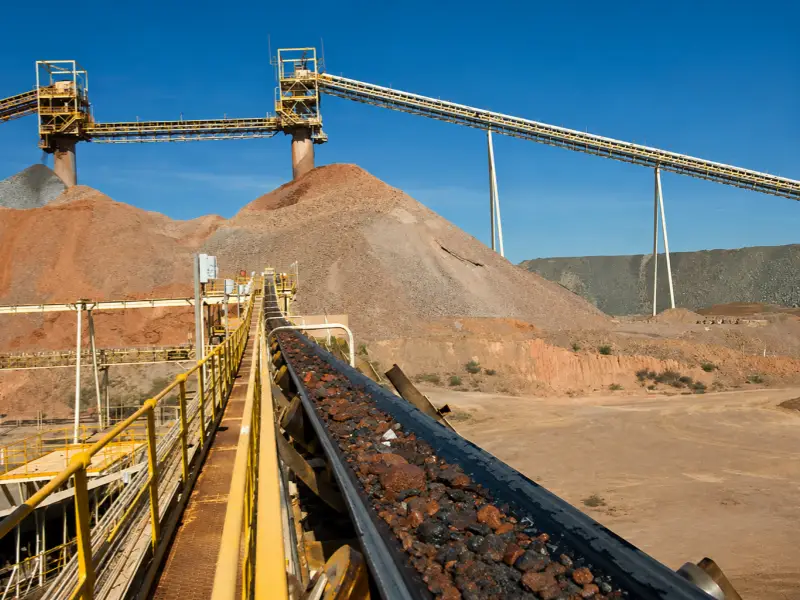

Mining and Quarry Conveyors
Commonly selected for rugged conveying environments where sharp, heavy, or abrasive materials are transported over fixed conveyor systems.

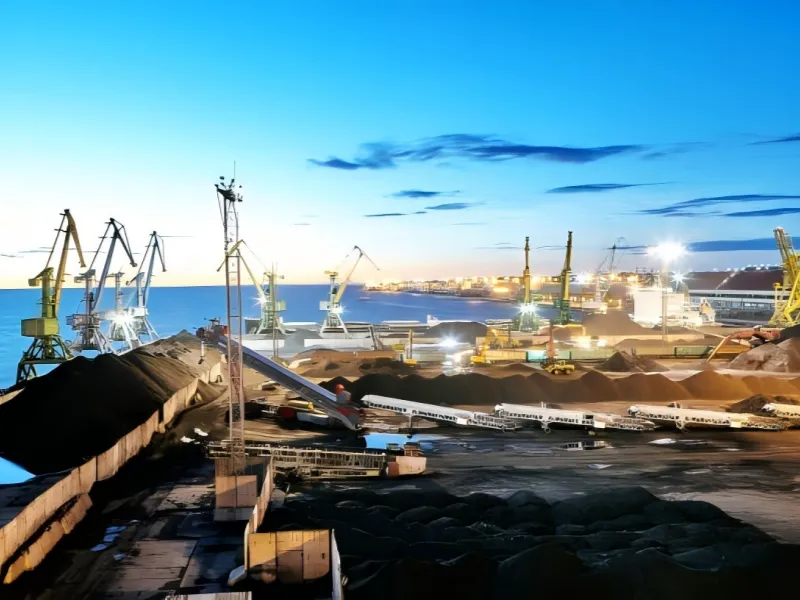

Ports, Cement Plants, and Power Plants
Suitable for bulk material transfer in port terminals, cement production lines, coal handling systems, and other large industrial facilities.
Quality Assurance for Your Steel Cord Conveyor Belt Order
You need more than a verbal quality promise when purchasing Steel Cord Conveyor Belt for mining, cement, power plant, port, or long-distance conveying systems.
Your order is checked through key quality points from raw materials to finished belts, including compound performance, adhesion, abrasion resistance, tensile strength, belt width, and belt thickness.
For project and bulk orders, you can request inspection records and retained sample support based on your order requirements.
This gives you a clearer basis for delivery acceptance, after-sales communication, and long-term supplier evaluation.
Our Certificates
Clients Feedback
Perhaps you are worried about these things.
How can I be sure the belt is suitable for my application?
What information do you need before providing a recommendation?
Can you match the specification of our current belt?
What if I only have photos or basic project information?
How do you maintain consistency for repeat orders?
What industries commonly use steel cord conveyor belts?
