China EP Conveyor Belt Manufacturer
Get reliable EP conveyor belts for quarry, cement, mining, recycling, and general bulk material handling applications.
- 1–5 Years Warranty Based on Cover Rubber Type
- ISO / DIN / MA Certified Factory Supply
- Factory Direct Competitive Pricing
- 20+ Years Export Experience
Select Your Right EP Conveyor Belt
EP Conveyor Belt Specification
| Carcass Type | Carcass Thickness (mm/p) | 2 Ply | 3 Ply | 4 Ply | 5 Ply | 6 Ply |
|---|---|---|---|---|---|---|
| EP100 | 1.00 | 200 | 300 | 400 | 500 | 600 |
| EP125 | 1.00 | 250 | 375 | 500 | 625 | 750 |
| EP150 | 1.10 | 300 | 450 | 600 | 750 | 900 |
| EP200 | 1.20 | 400 | 600 | 800 | 1000 | 1200 |
| EP250 | 1.40 | 500 | 750 | 1000 | 1250 | 1500 |
| EP300 | 1.60 | 600 | 900 | 1200 | 1500 | 1800 |
| EP350 | 1.70 | 700 | 1050 | 1400 | 1750 | 2100 |
| EP400 | 1.90 | 800 | 1200 | 1600 | 2000 | 2400 |
| EP500 | 2.10 | 1000 | 1500 | 2000 | 2500 | 3000 |
| EP630 | 2.60 | 1260 | 1890 | 2520 | 3150 | 3780 |
Cover Rubber Options
| Region / Standard | Cover Rubber Type | Key Features / Application |
|---|---|---|
| Germany | W, X, Y, Z, K, V | General, flame-retardant, antistatic; tensile and abrasion per DIN 22131 / 22102 / 22103 |
| Australia | A, E, F, M, TDOZ, N, S | Wear-resistant, antistatic, flame-retardant, PVC; tensile and abrasion per AS1333-94 / AS1332:1991 |
| International | H, D, L | Strong cut/tear, high/medium wear; per ISO10247:1990 |
| Soviet / Russia | A, B, N, C, M, T1-T3, 2T1-2T2, JI | General, heat-resistant (<200℃), food-grade; per DOCT20-85 |
| Japan | P, G, S, A, H, D, L | General, strong cut/tear, medium wear; per JIS K6322:1999 / ISO10247:1990 |
| UK | M24, N17, B | General, flame-resistant; per BS490: P1/P3 |
| USA | RMA1, RMA2 | General, wear-resistant; per ASTM standards |
Extreme Conditions Available
- Heat-Resistant Rubber: Continuous operation over 250°C
- Cold-Resistant Rubber: Maintains flexibility down to -50°C
You can select cover rubber type based on material, environment, and temperature requirements. Warranty and service terms are confirmed based on cover rubber type and application.
Who is Tiantie Industrial
Tiantie Industrial Co., Ltd supplies EP Conveyor Belt solutions for heavy-duty bulk material handling, including mining, cement plants, power plants, ports, quarries, recycling facilities, and general industrial conveying systems. All products are manufactured under a controlled production system, supporting stable quality, consistent output, and reliable project delivery.
What sets Tiantie Industrial Co., Ltd apart is practical belt matching and stable factory supply. From fabric carcass selection to cover rubber options, dimensional control, and final inspection, every order is built around confirmed working conditions—helping reduce purchasing risk, support repeat orders, and keep conveyor systems running reliably.
Why Choose Tiantie Industrial Conveyor Belt
Cover Rubber Matched to the Material You Carry
Different materials damage the belt in different ways. Crushed stone can wear the surface quickly, hot clinker can harden the rubber, and oily materials can make ordinary covers swell or soften. We help match the cover rubber to your material instead of using one standard cover for every order.

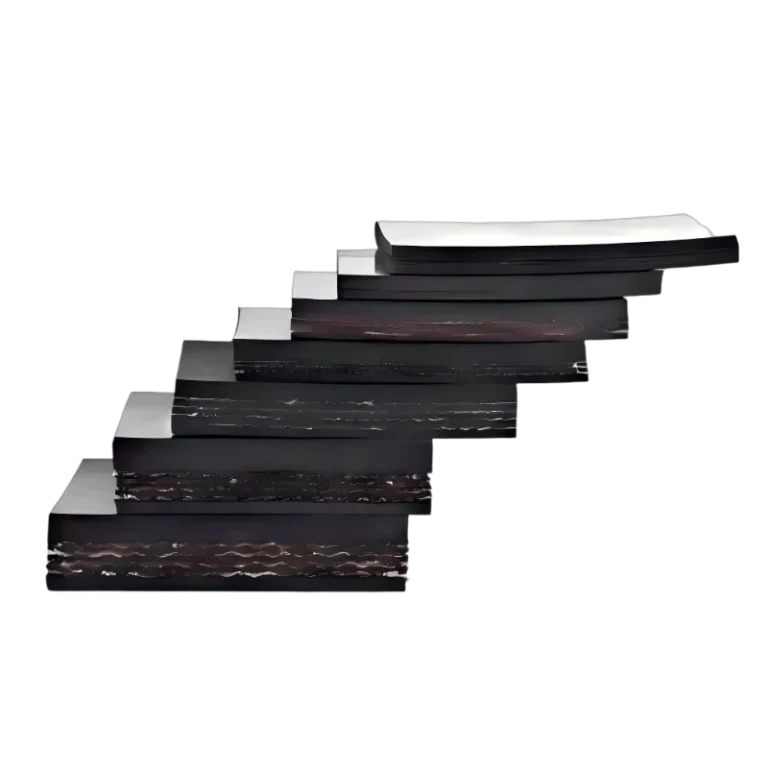

EP Fabric Layers Built for Repeated Bending
EP conveyor belts pass over pulleys thousands of times every day. If the fabric structure is not suitable, the belt may become difficult to track or wear faster at the edges. A proper ply structure helps the belt bend smoothly while still supporting the load.
Easier Replacement for Existing Conveyor Systems
Many buyers are not starting a new project. They simply need a belt that can replace the one already running on site. You can send the old belt marking, photos, width, length, and cover thickness. We help check the specification before production.
Consistent Supply for Repeat Orders
For distributors and maintenance buyers, one good order is not enough. The next shipment must match the previous one in size, surface finish, marking, and packaging. We keep confirmed order details to make repeat purchasing easier and safer.
Manufacturing Capacity for EP Conveyor Belt Production
Tiantie Industrial Co., Ltd operates a 120,000-square-meter manufacturing facility with 60 advanced production lines and more than 300 production staff.
With over 30,000 tons of annual rubber mixing capacity, daily conveyor belt output exceeding 35,000 meters, and monthly capacity over 800,000 meters, Tiantie supports stable supply for large industrial and project-based orders.
Production strength is supported by automated batching, enclosed internal mixing, calendering, hot lamination, and more than 40 vulcanization systems, supporting the production of EP conveyor belts and other industrial conveyor belt constructions.
With 8 technical engineers and 20 laboratory specialists, every order is controlled from raw materials to finished belts through compound, adhesion, abrasion, tensile strength, width, and thickness inspections.
RUBBER MIXING CAPACITY
Monthly Output
PROJECTS DELIVERED
ADVANCED PRODUCTION LINES
Where EP Conveyor Belt Fits Best
Choose EP Conveyor Belt when you need a versatile conveyor belt for bulk material handling, repeated daily operation, and general industrial conveying environments.

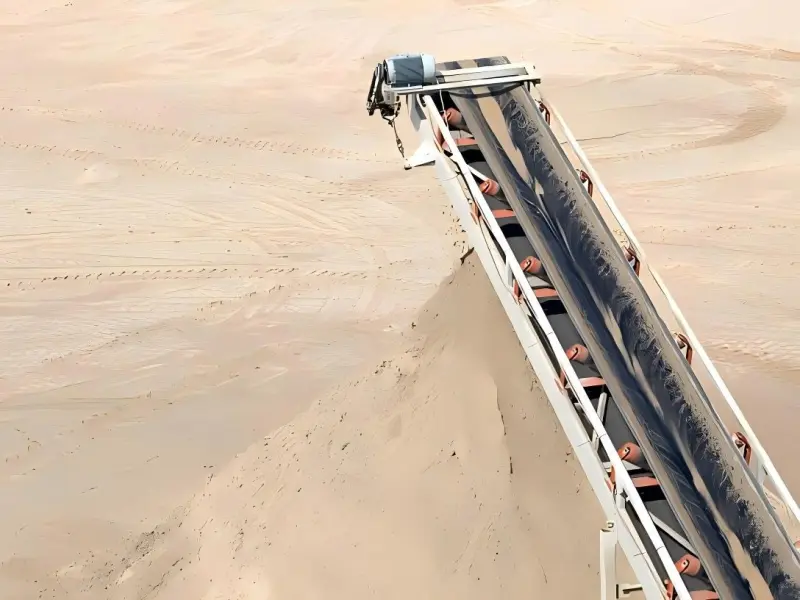

Quarry and Aggregate Handling
Used for transporting crushed stone, gravel, sand, and aggregates in quarry operations where the belt must handle continuous loading and abrasive materials throughout the working day.
Mining and Raw Material Transport
Suitable for moving ore, coal, limestone, and other bulk materials over fixed conveyor systems. Commonly used in mines, processing plants, and raw material stockyard operations.
Cement Plant Conveying Systems
Widely used throughout cement production, including limestone transport, raw material feeding, clinker handling, and finished product movement between different process stages.

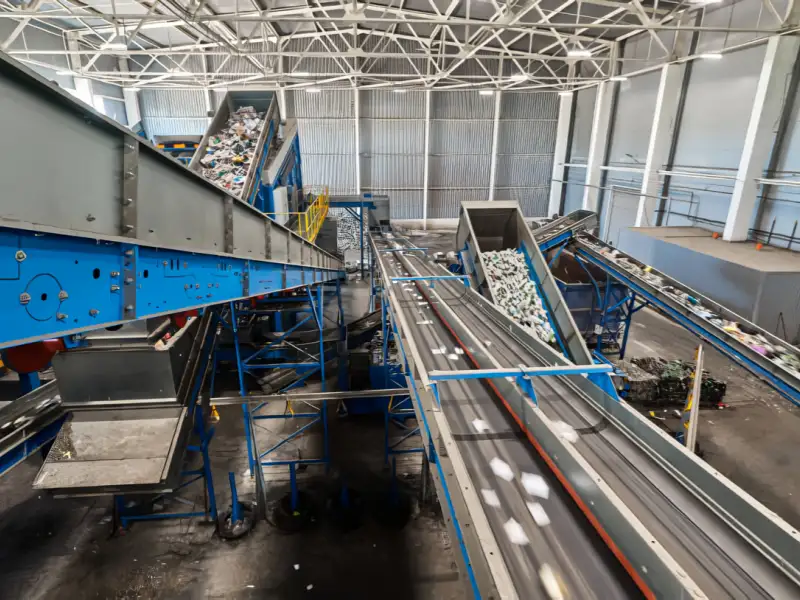

Recycling and Waste Processing
A practical choice for recycling facilities where mixed materials, construction waste, scrap products, and industrial waste need to be transported continuously through sorting and processing lines.

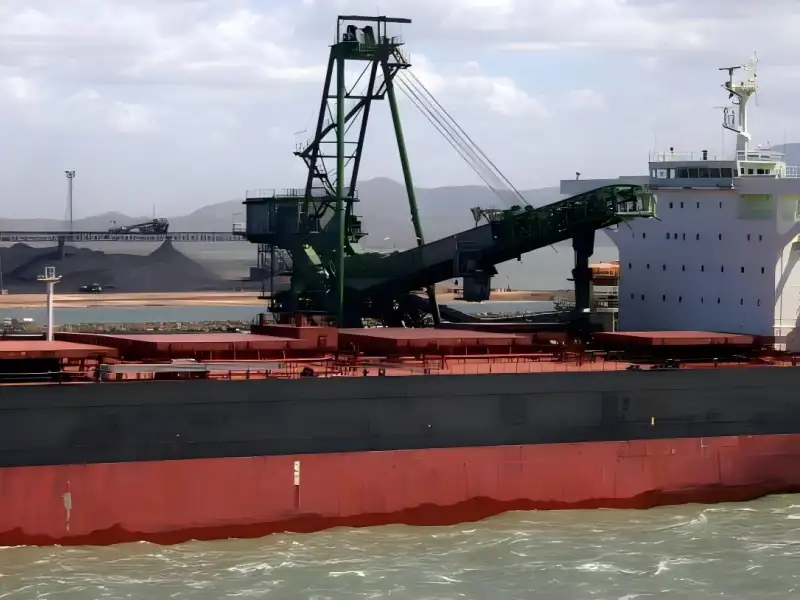

Ports and Bulk Cargo Transfer
Used in port terminals and storage facilities for loading, unloading, and transferring bulk cargo such as coal, fertilizer, grain, aggregates, and other loose materials.
General Industrial Production Lines
Suitable for factories and industrial plants that require reliable material transfer between production stages, warehouses, storage areas, and packaging systems during daily operation.
Quality Assurance for Your EP Conveyor Belt Order
You need more than a verbal quality promise when purchasing an EP Conveyor Belt for mining, cement, power plants, ports, quarries, recycling, or bulk material handling systems.
Your order is checked through key quality points from raw materials to finished belts, including rubber compound condition, fabric layer bonding, abrasion resistance, tensile strength, belt width, and belt thickness.
Depending on the conveyor belt type, cover rubber grade, and actual working conditions, we can provide a 1–5 year warranty for eligible orders. The specific warranty period and coverage are confirmed based on your application and order requirements, so you know what is covered before delivery.
Our Certificates
Clients Feedback
Perhaps you are worried about these things.
How can I be sure the EP conveyor belt is suitable for my application?
Can you match the specification of our current belt?
What industries commonly use EP conveyor belts?
What if I only have photos or basic project information?
How do you maintain consistency for repeat orders?
What information do you need before providing a recommendation?
